PA hotmelt low pressure molding
Vertical Injection
Hot Runner Dual Working Stations with Separate Tank

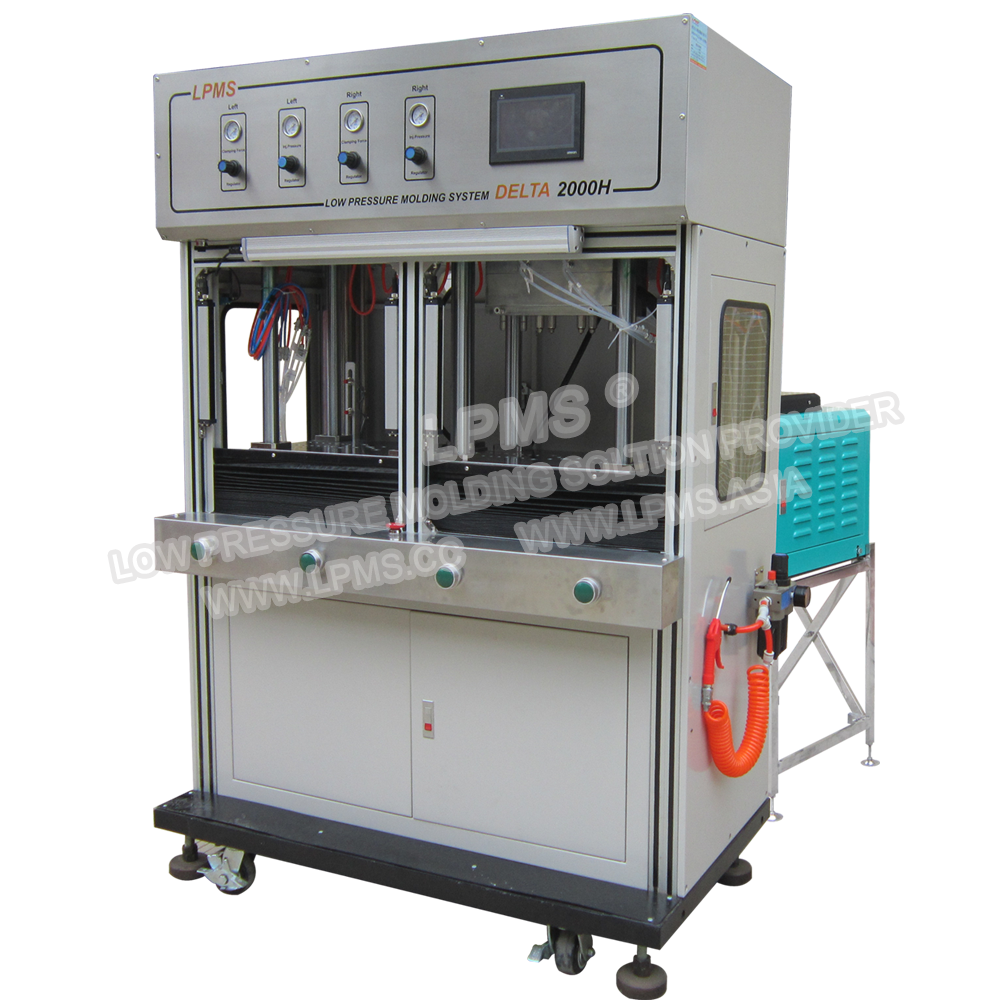

DELTA 2000H

Hot Runner Dual Working Stations with Separate Tank

  •   Intuitive touch screen operation.

  •   Hot runner system eliminates runner and improve productivity.

  •   Separate 7 liter melting tank(s). Multiple meltingtank is optional.

  •   LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

  •   Linear scale

  •   The gear pump is made of hard-wearing material,which is stableinjection volume accuracy ±0.1gmaximum shot size is 5.8g/s.

  •   Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

  •   Light curtain and dual palm buttons for operator safety.

  •   Ejection system.


Application

   LPMS?  machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

  Hot runner system eliminates runners and higher output per cycle. It is designed for high volume production.



Specification


Machine Size / Weight

1400 mm x800 mm x 1920 mm / 600 kg

55.12 in x 31.50 in x 75.59 in / 1323 lbs

Footprint

1400 mm x 1700mm  |  55.12 in x 66.93 in

Working Station Height

905 mm  |  35.63 mm

Packing Size / Weight

1470 mm x 960 mm x 2140 mm / 640 kg

57.87 in x 37.80 in x 84.25 in / 1411 lbs

Melting Tank

Melt on demand 7 liter x 1

Auto Feeding System

Optional

Gun Model & Tip

Hot Runner System

Heated Hose

1.6 m x 2

Electricity

200-240VAC / 1 Phase / 50 Hz

Temperature Control Zones

11 or 15,depends on part design

Each Station Gun Tip Q'ty

2 or 4 , depends on part design

Temperature Range

Ambient up to 250°C / 485°F

Max .Power

9.5 Kw

Min. Air Pressure

0.5 MPa  |  73 Psi

Air Consumption

0.18 m3 / min  |  6.3ft3 / min

Clamping

Air Over Oil Cylinder

Clamping Force

Max.5 Tons ( Option 10 Tons )

Clamping Stroke

150 mm  |  5.9 in

Control System

7 ”HMI , PLC controlled

Safety Protection

Light Curtain , emergency stop button

Mold Set Size

250 mm x 150 mm x 308mm / 75 kg

9.84 in x 5.91 in x12.13 in / 165 lbs

Max . Mold Set Size

300 mm x 200 mm x 308 mm

11.81 in x7.87 in x12.13 in

Max . Part Size

100 mm x 90 mm x 18 mm

3.94 in x 3.54 in x 0.71 in




Dimension
